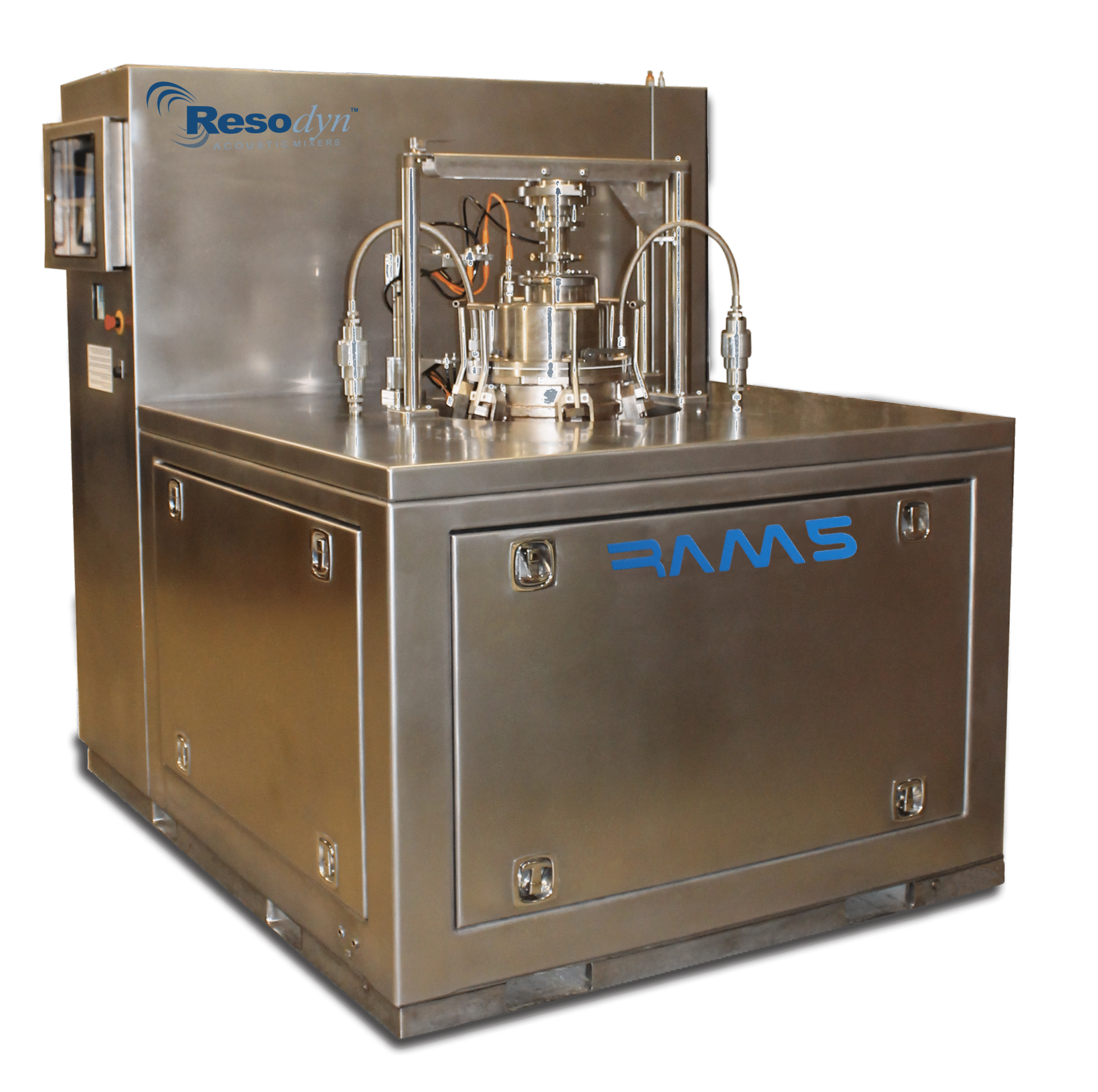

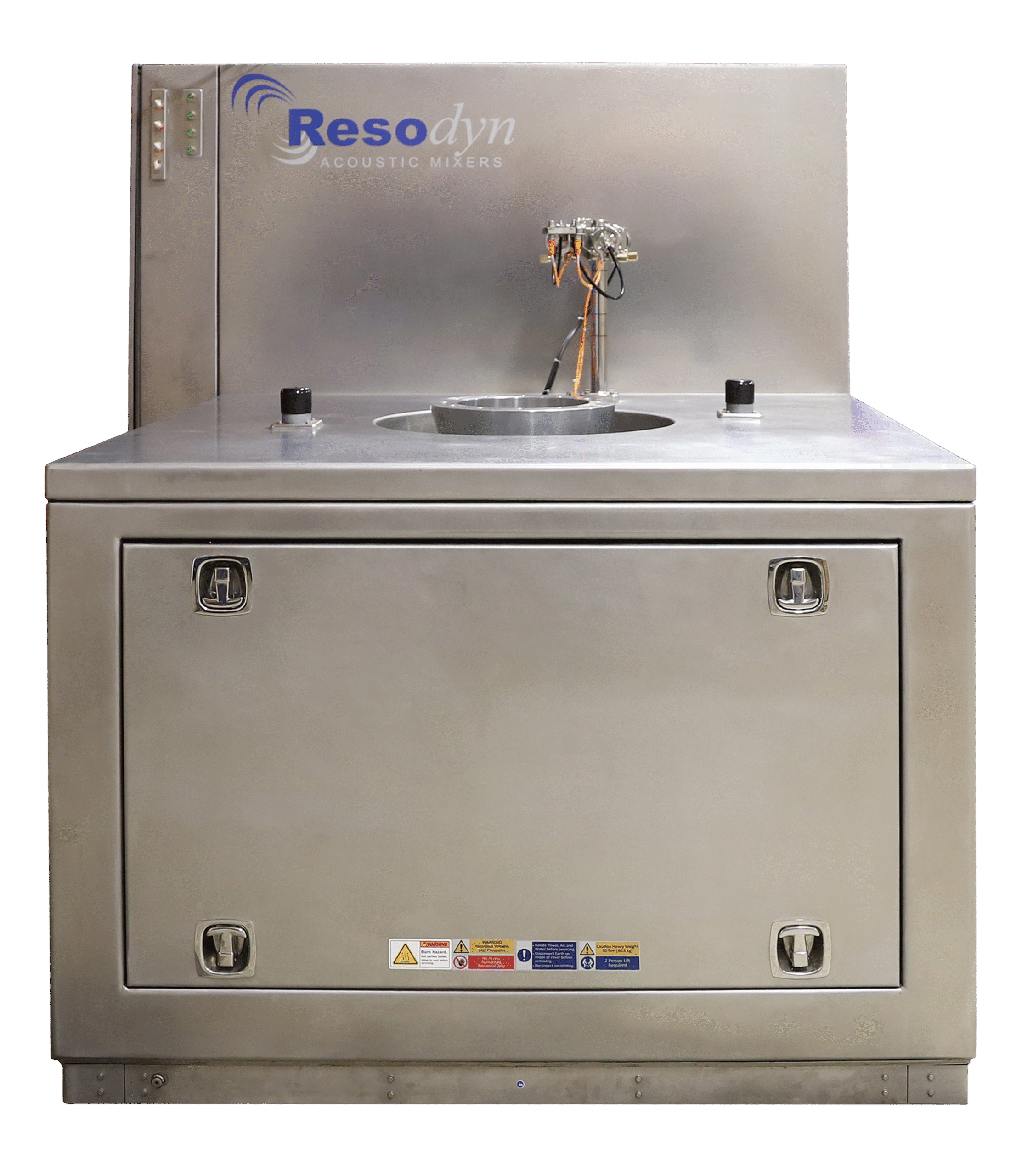

RAM5 H
Production Mixer
The RAM5 H energetics production mixer offers better results, improved efficiency, and new product opportunities over conventional mixers. Key capabilities include mixing and processing up to at least 80 lb (36 kg) of material. The machine is capable of milling, mixing, grinding and coating. Each RAM5 H is certifiable to Class I Div I, Class II Div I, and other standards.
All enclosure materials are sealed, purged 304L stainless steel, preventing entry of processed materials into the enclosure, and redundant ground paths mitigate static charge build-up. Remote control panel operation is available from up to 2.5 miles (4 km).
Need a custom solution? All mixers can be customized for unique automations and applications.
Resodyn's Best Selling Energetics Production Mixer
The RAM5 H is a production-level machine, able to create large amounts of material. Designed with both on-board and remote control, it has flexibility of operation. The optional temperature and vacuum ranges are the same as seen with the OmniRAM and LabRAM II H, allowing for continuity of production. Thos ranges are 302°F (150°C) to 32°F (0°C) and down to 10 Torr.
This machine can mix explosive filler directly in munitions, eliminating the dangerous and complicated explosive pouring process.
Key Processing Capabilities
- Processes up to 80 lb (36 kg) per batch
- Handles solids, powders, liquids, gases, and viscous materials
- Supports milling, grinding, sieving, and coating (spray or dry)
- Enables temperature control
- Offers vacuum processing
- Provides real-time monitoring and downloadable data for analysis
- Stores up to 100 recipes for repeatable operations
Key Advantages
- 10–100x faster processing compared to traditional mixers
- Highly repeatable results for consistent product quality
- Direct scalability across the RAM product line
- Exceptional ingredient distribution
- Proven performance across global industries and applications
- Variety of certifications available
Transformative For Near-Net-Shape Production
The RAM 5 H has also proven itself as a transformative tool for near-net-shape production of plastic bonded explosives (PBX) and other energetics - mixing and casting directly into final or near-final geometry containers, dramatically reducing the cost and hazard exposure associated with post-cure machining. Near-net-shape techniques on the RAM5 H have already helped McAlester Army Ammunition Plant save taxpayers over $20 million.

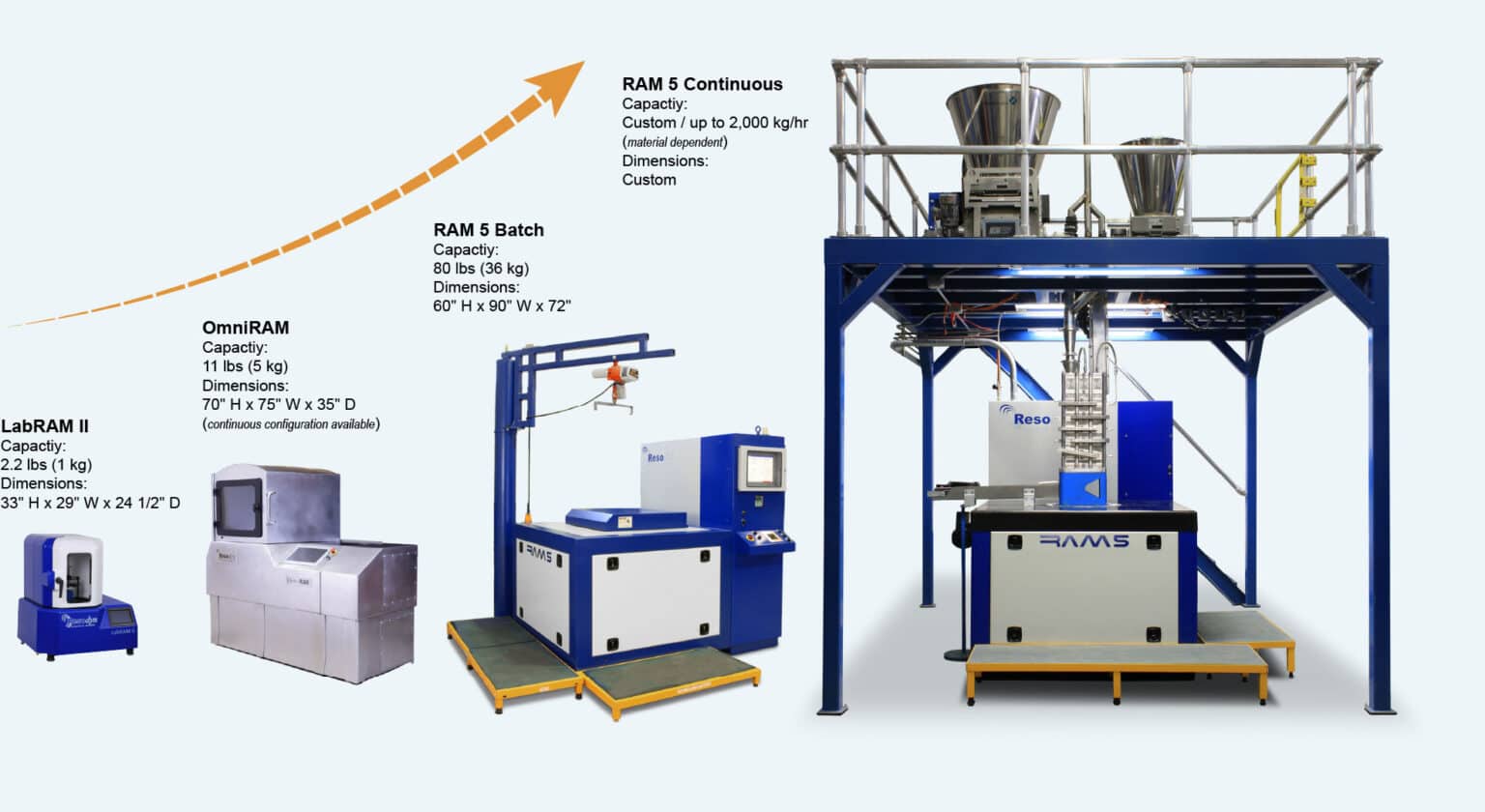

Compare the RAM family
ResonantAcoustic® mixing scaled to your needs, from the lab to the production floor.
